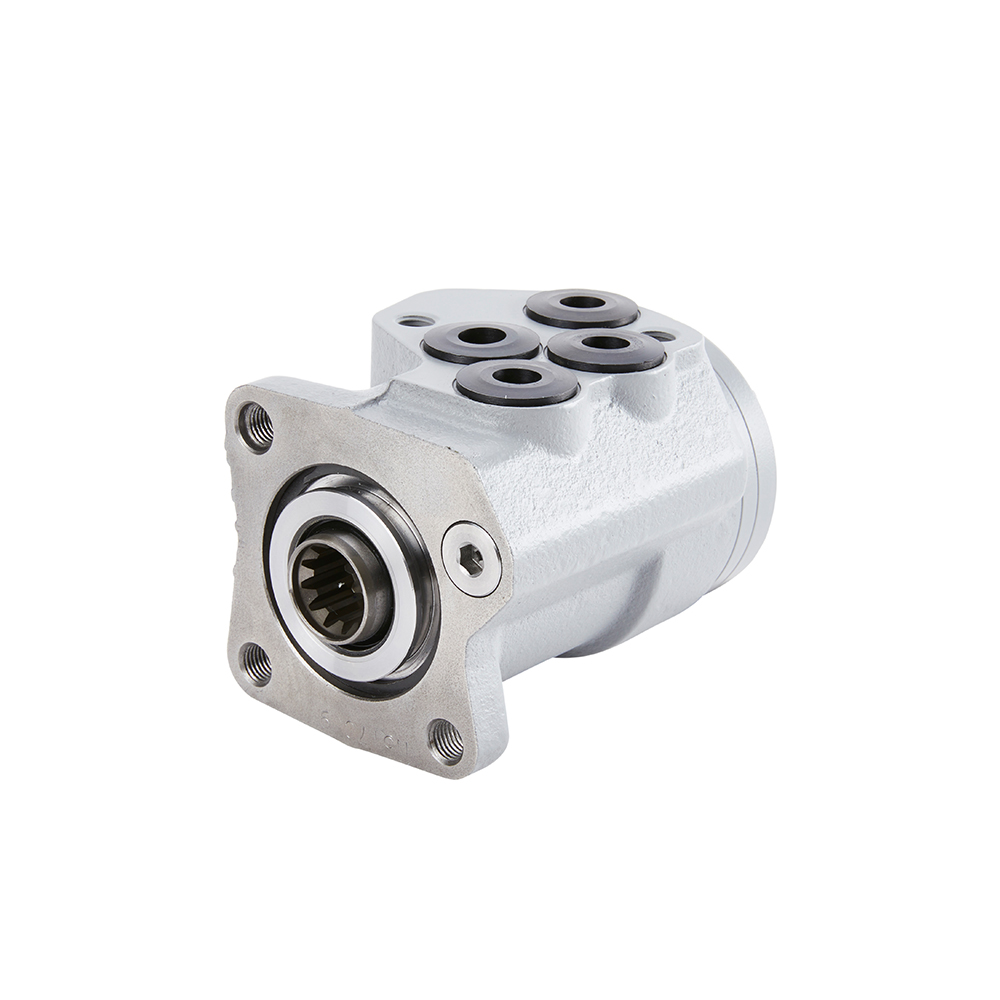

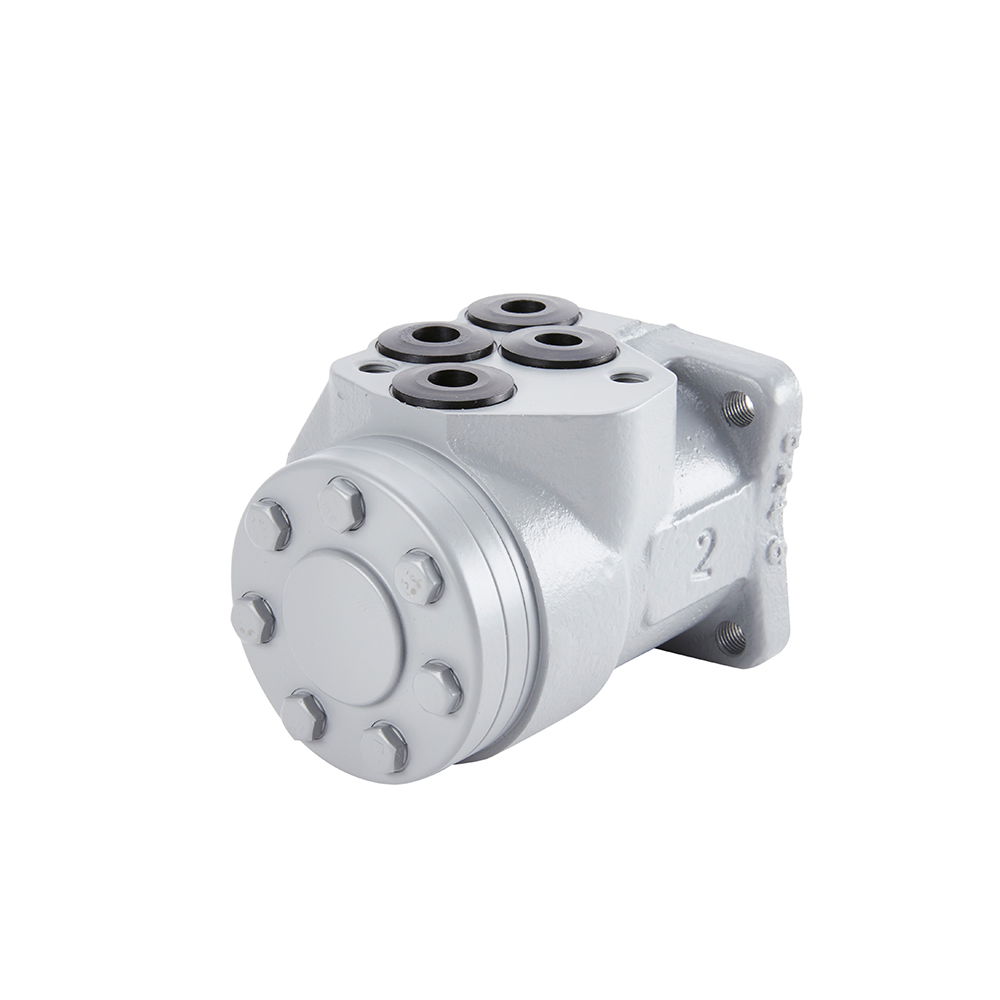

Mini Steering Unit

Features

• 크기가 작고 가벼움
• Garden tractor, municipal vehicles, small tractor 등 light vehicles에 사용
• Valve block 장착에 의한 다양한 port방향 선정
• 주문자 요구에 의해 특수사양 선정가능 (설계 문의)
  high back pressure, low input torque, etc

Specifications

• Displacement : 31~80cc/rev
• Rated Flow : 8~16l/min
• Max System Pressure : 140kgf/㎠ (13.7MPa)
• Relief Pressure Setting Range : 60~140kgf/㎠ (5.9~13.7MPa)
• Max Back Pressure : 20kgf/㎠ (2.0MPa)
• Steering Input Torque : 0.1~0.2kgf.m
• Max System Operation Temperature : 95℃
• System : Open Center (Non Load/Load Reaction)
