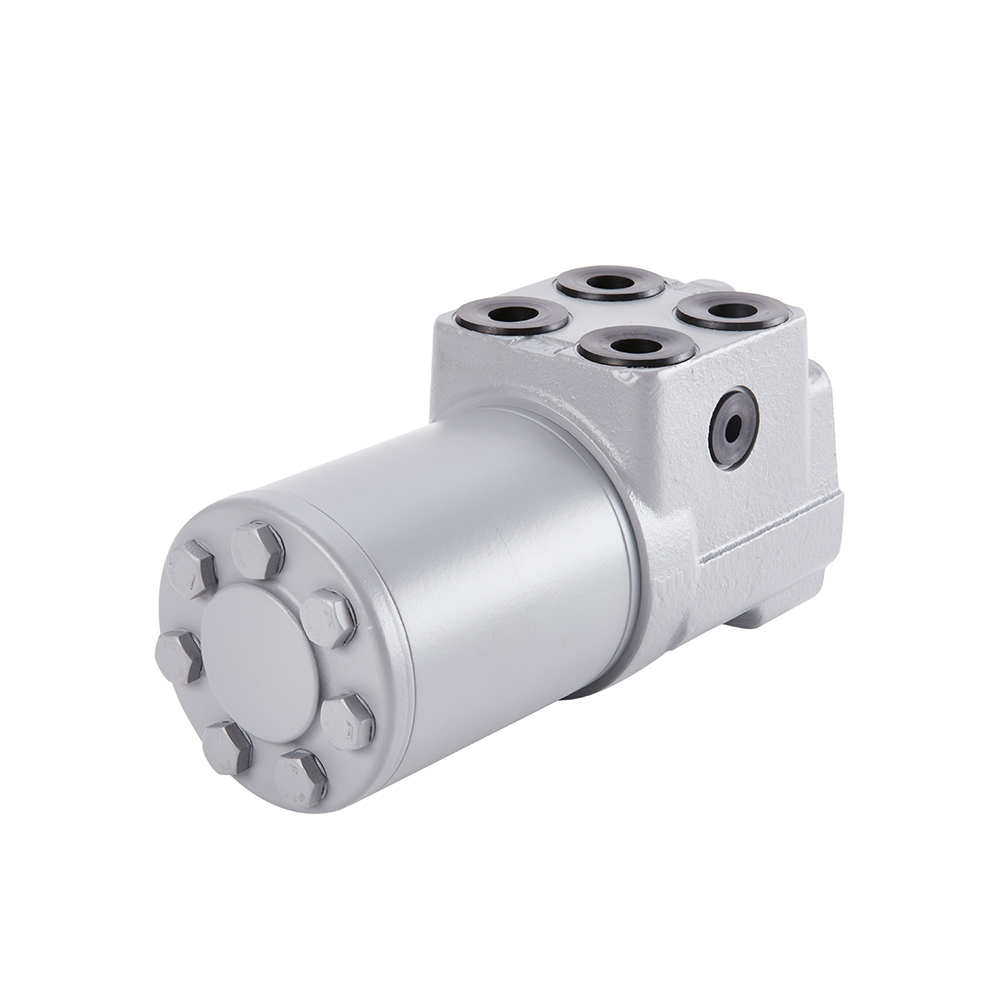

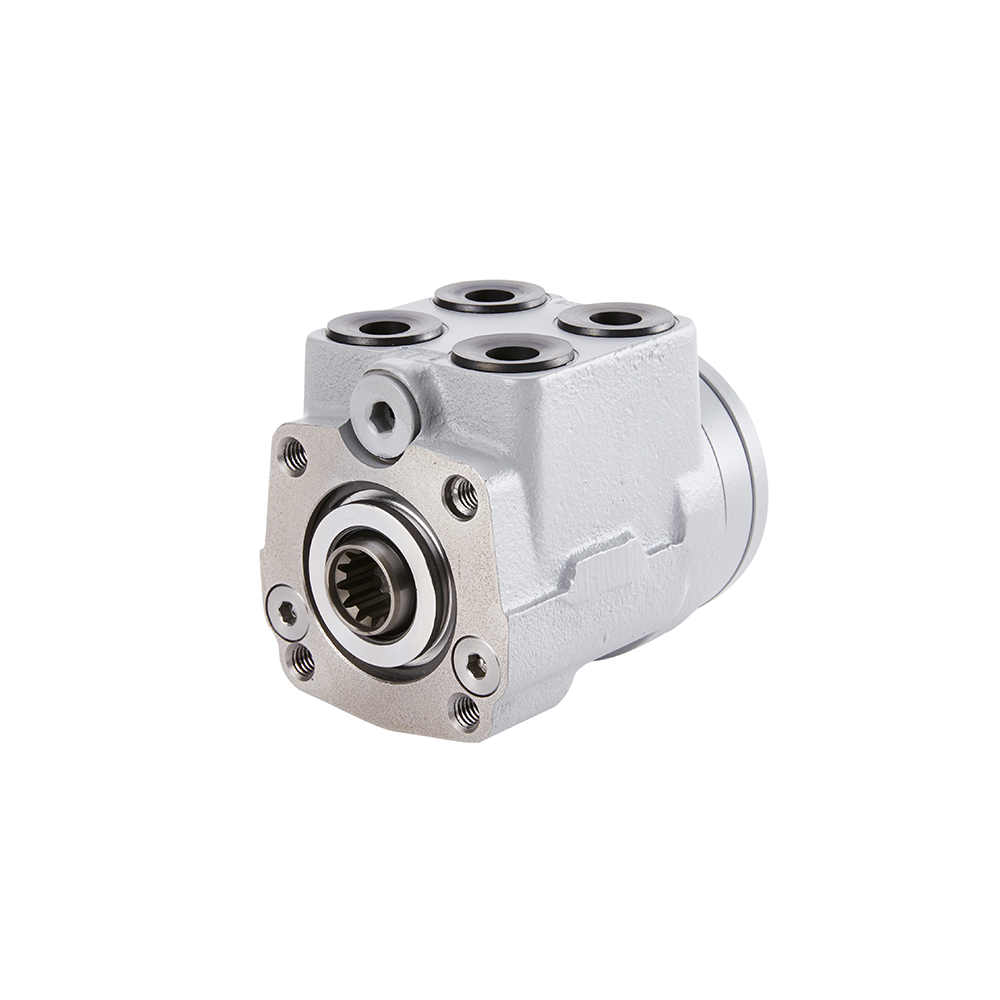

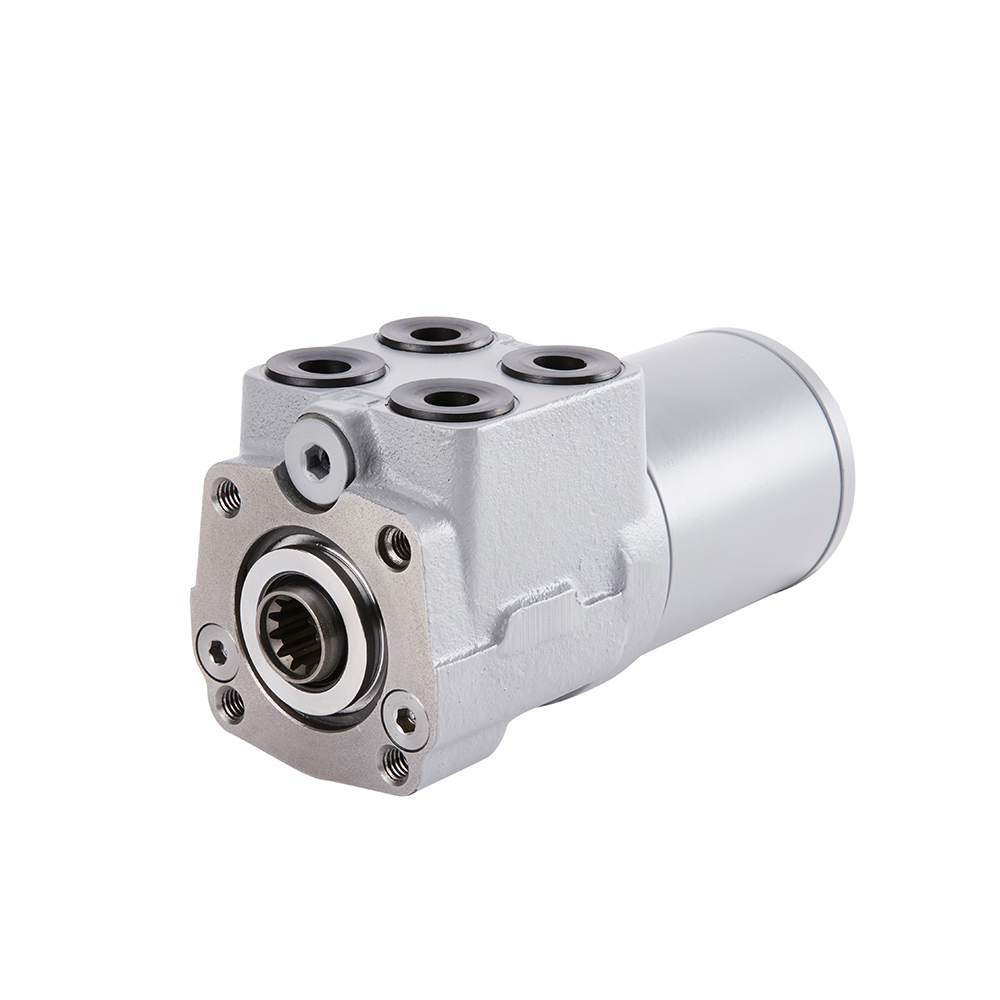

Integral Steering Unit

Features

• Embeds various integrated valves required in steering systems
  (inlet check valve, relief valve, suction valve, shock valve)

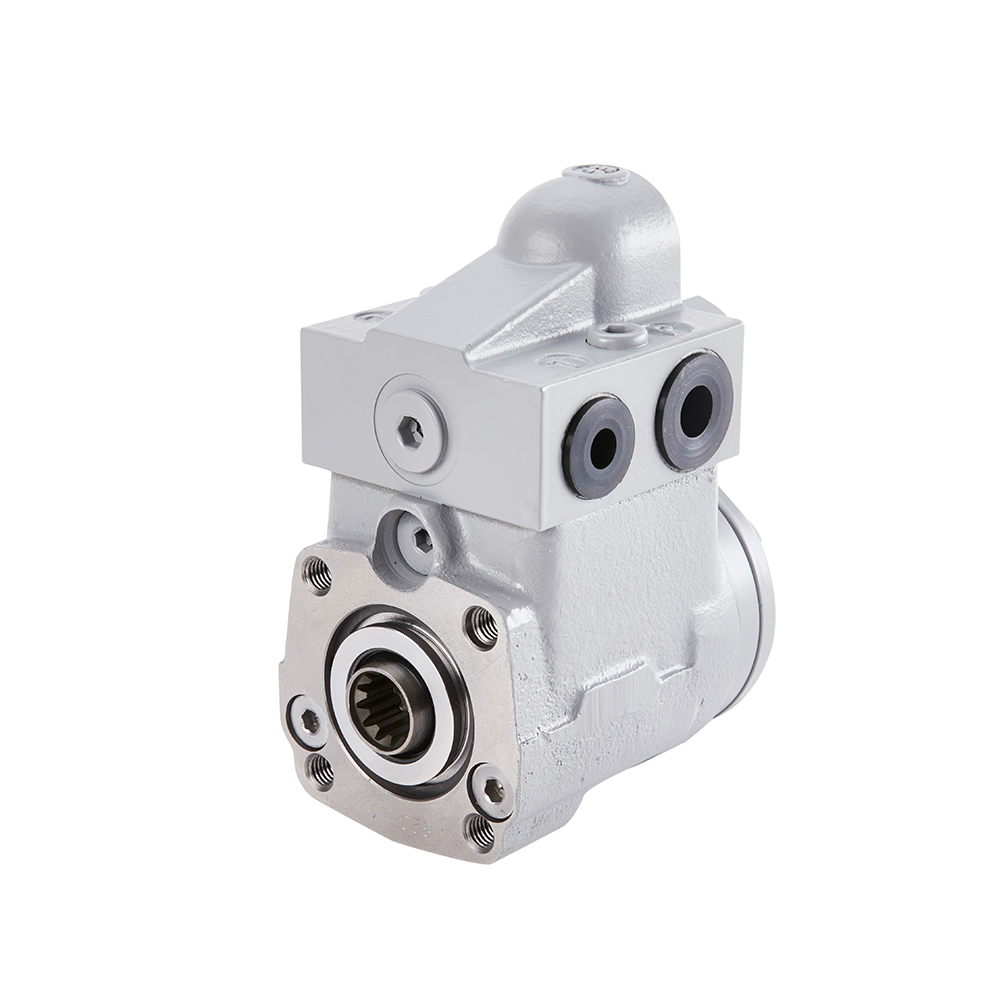

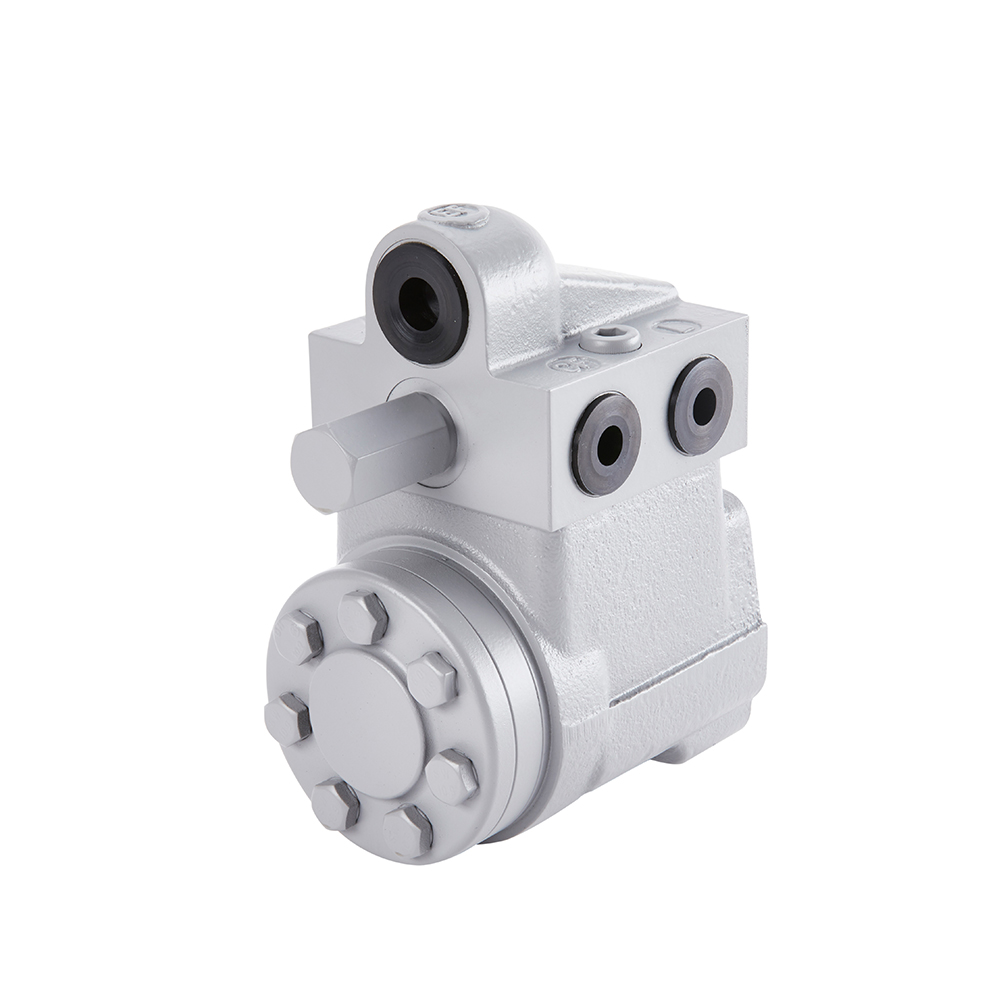

• Valve block can be mounted: priority valve, flow divider valve
• Special specifications can be selected upon the customer’s request (design inquiry)
  high system pressure, high back pressure, low slip gerotor, low input torque, etc.

Specifications

• Displacement : 40~740cc/rev
• Rated Flow : 8~45l/min
• Max System Pressure : 175kgf/㎠ (17.2MPa)
• Relief Pressure Setting Range : 60~175kgf/㎠ (5.9~17.2MPa)
• Relief Pressure Setting Range of Shock Valve : 140~230kgf/㎠ (13.7~22.6MPa)
• Max Back Pressure : 20kgf/㎠ (2.0MPa)
• Steering Input Torque : 0.1~0.2kgf.m
• Max System Operation Temperature : 95℃
• Recommended Filtration : nominal 10㎛
• System Open center, Closed Center or Load Sensing (Static or Dynamic Signal)
  Non Load Reaction or Load Reaction
